FMK4A4 Magneto Teardown, Cleaning, and Reassembly
K - Fairbanks Morse Model FMK
4 - Four Cylinder
A - Base Mount - a B here would designate Flange Mount
4 - Originally shipped to Minneapolis Moline

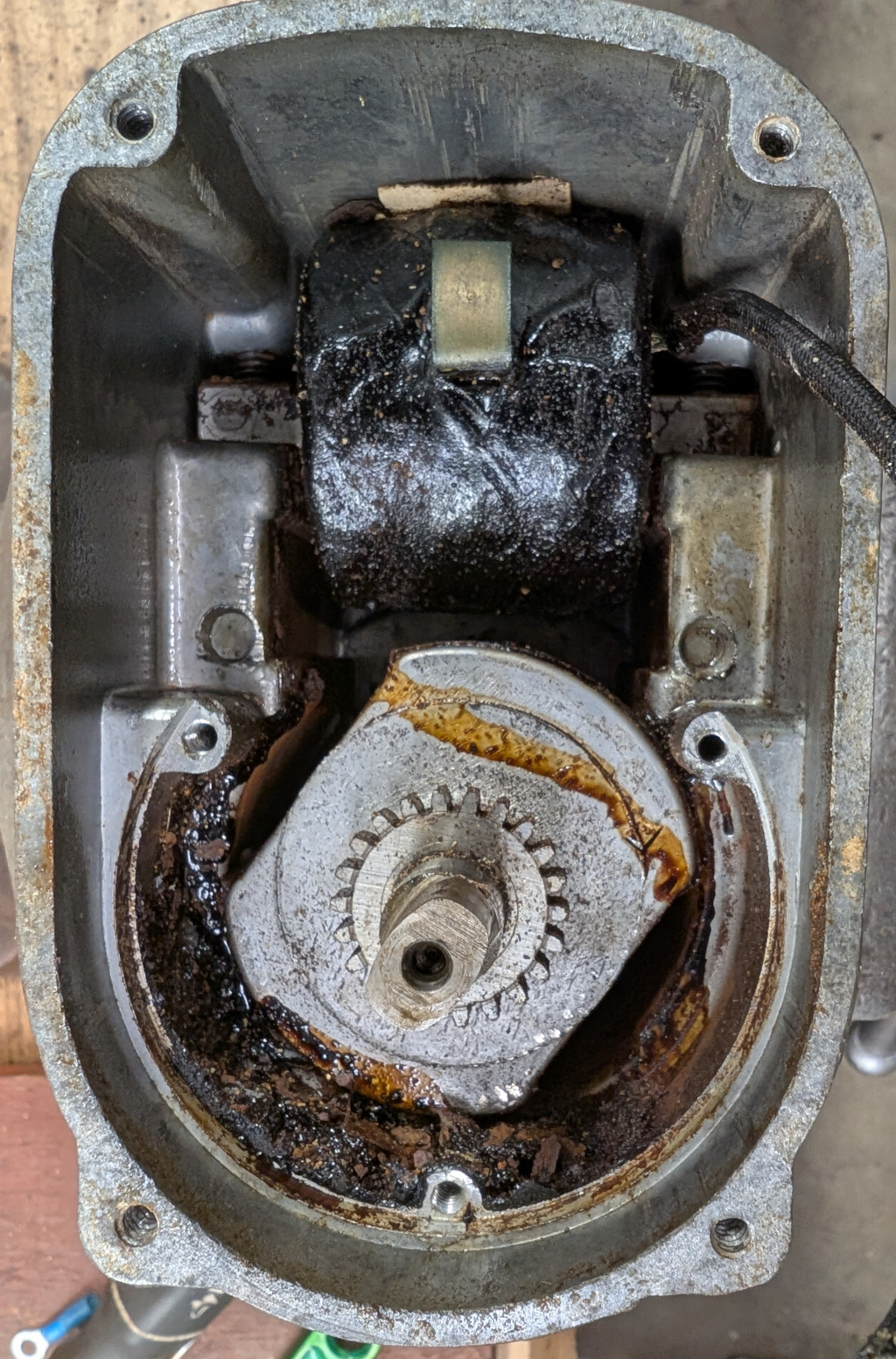

The reason it wouldn't turn can now be seen

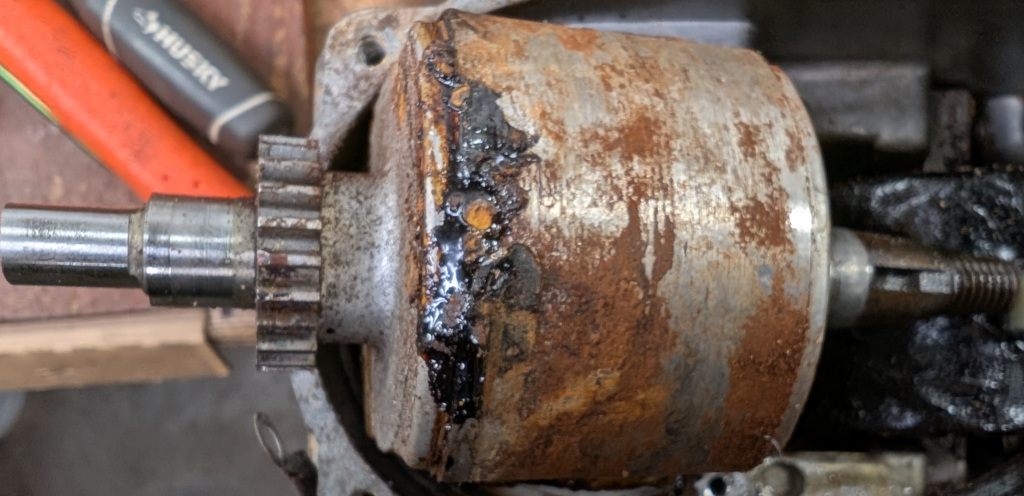

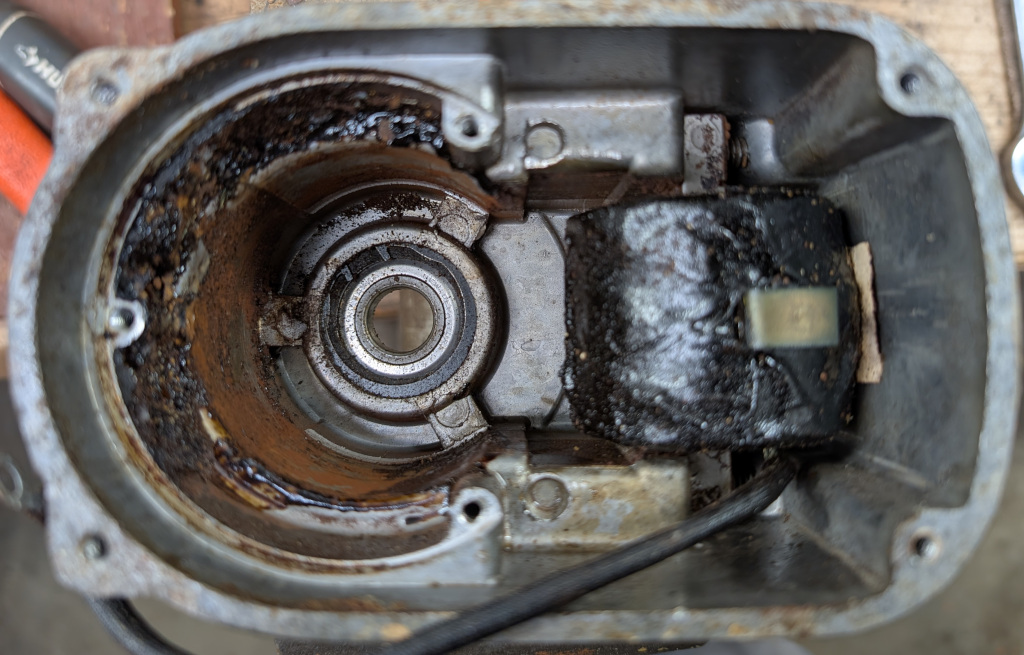

Tar from the old coil had run down and hardened
And moisture got the rust going
This basemount housing could be Clockwise or Anti-Clockwise

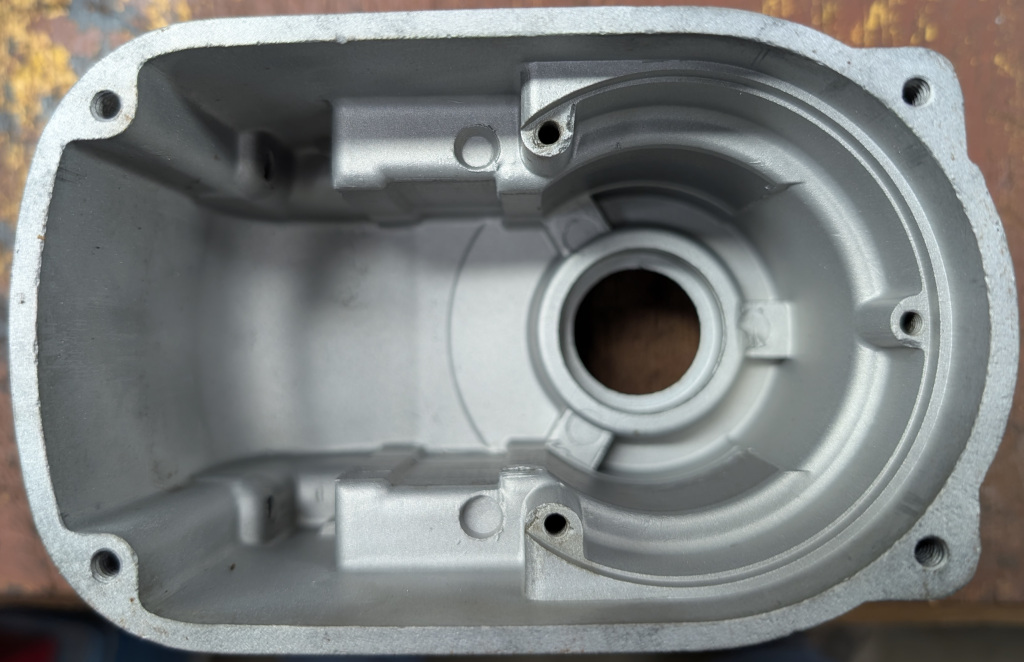

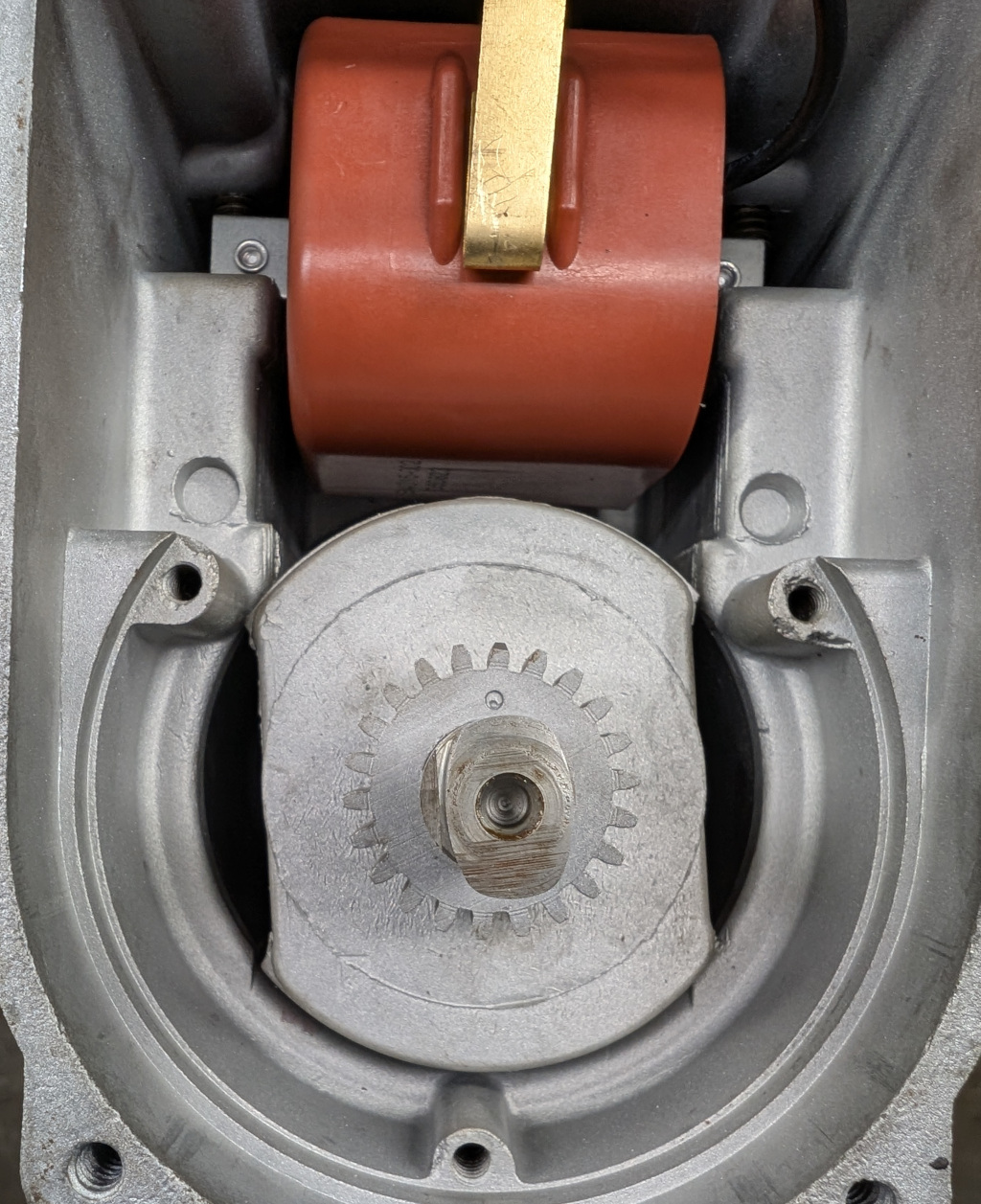

after a lot of scraping and bead blasting the housing is ready

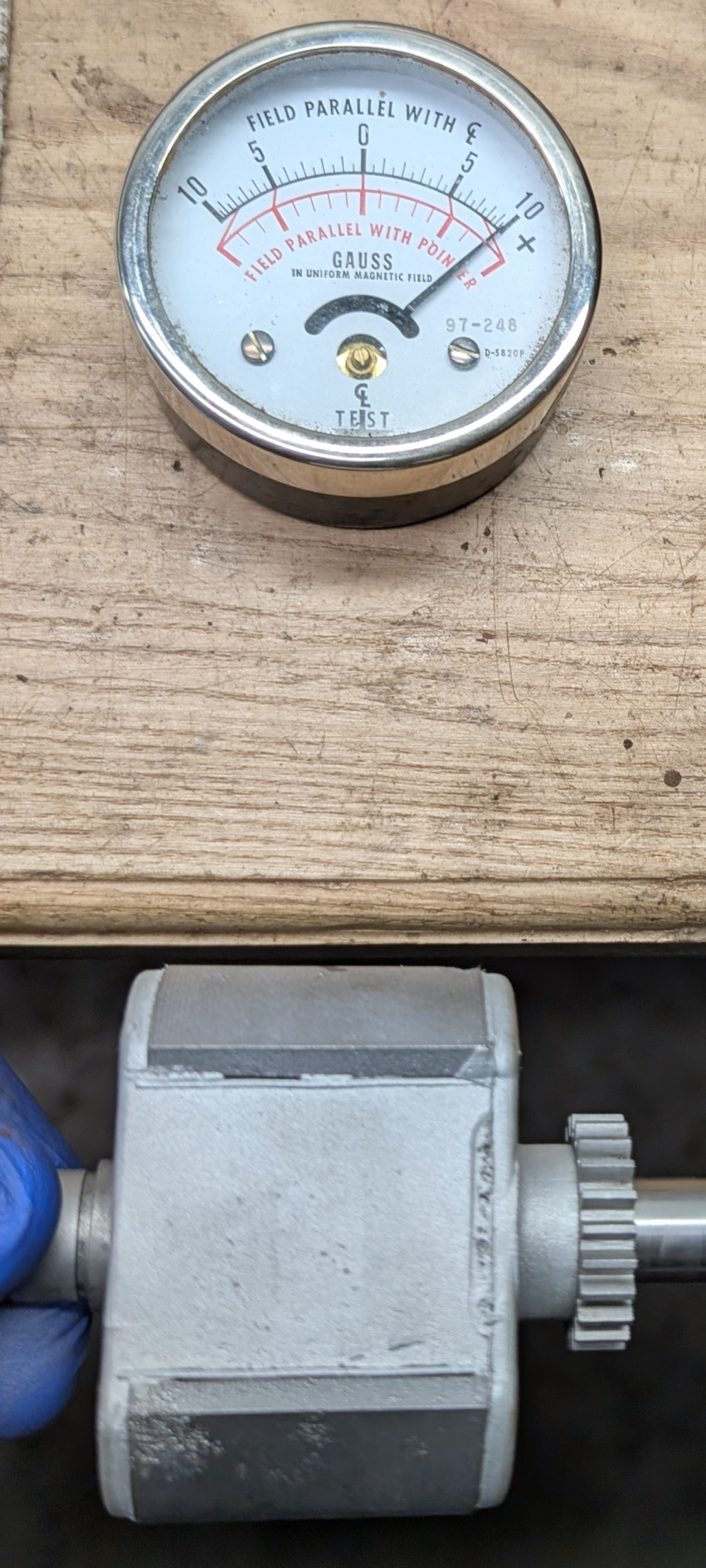

The gauss meter lets me know which way to orient the rotor in the magnetizer

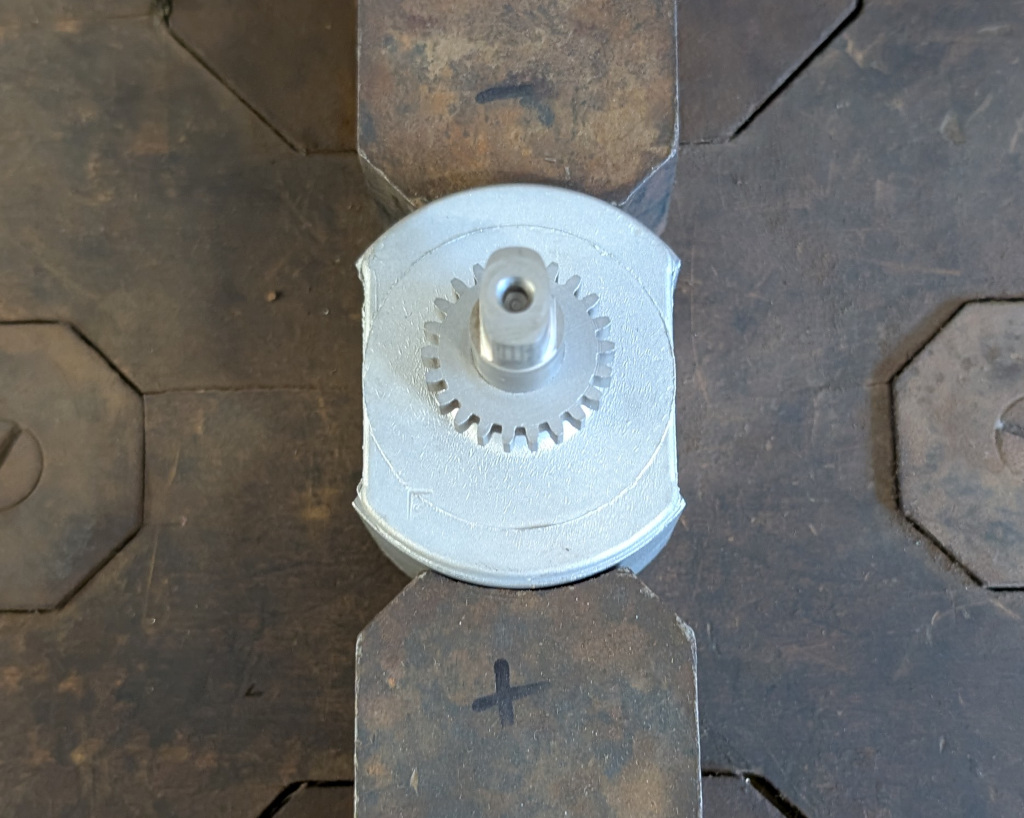

Mounted on the magnetizer it's ready to be zapped
The old Tungar tube diodes still light up - Tungsten filaments and Argon gas
The FMK had a wider bar in the coil, the narrower FMJ coil can be used but must be manually centered

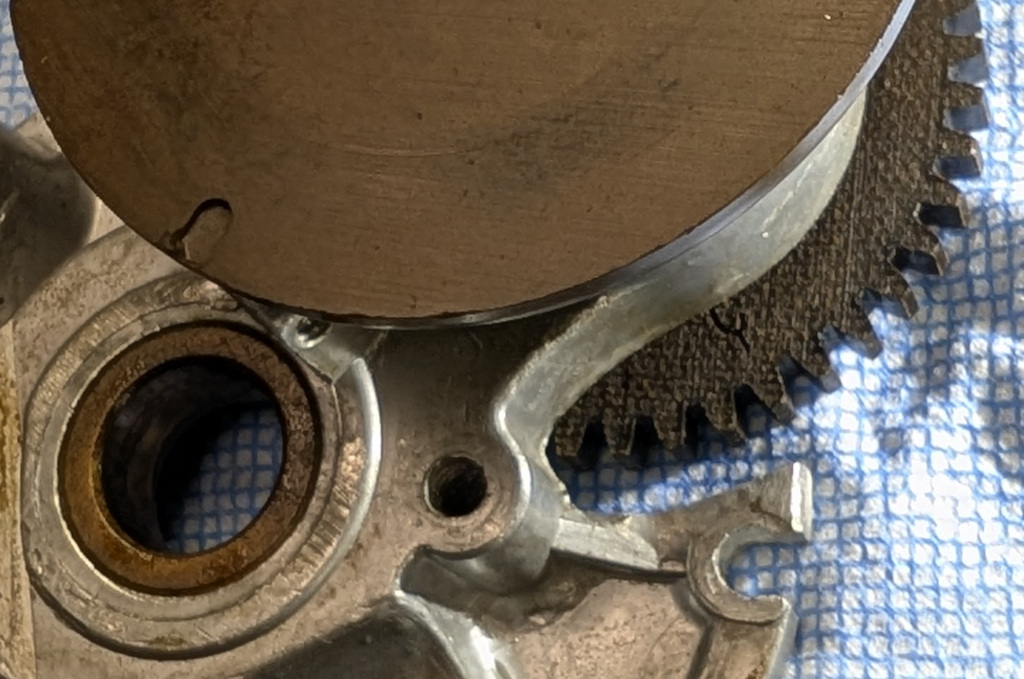

The marked tooth pointing straight up it's ready for the fiber gear

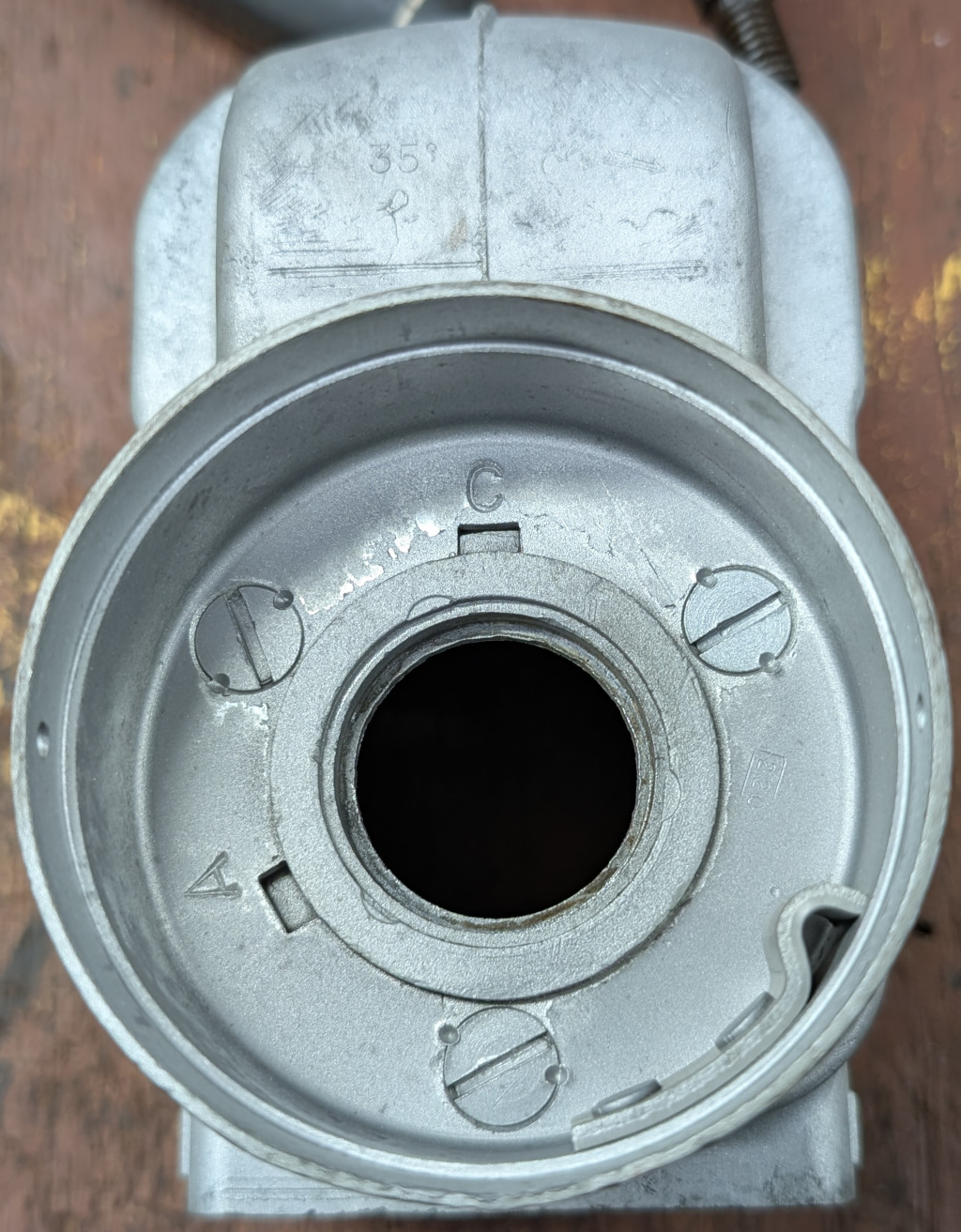

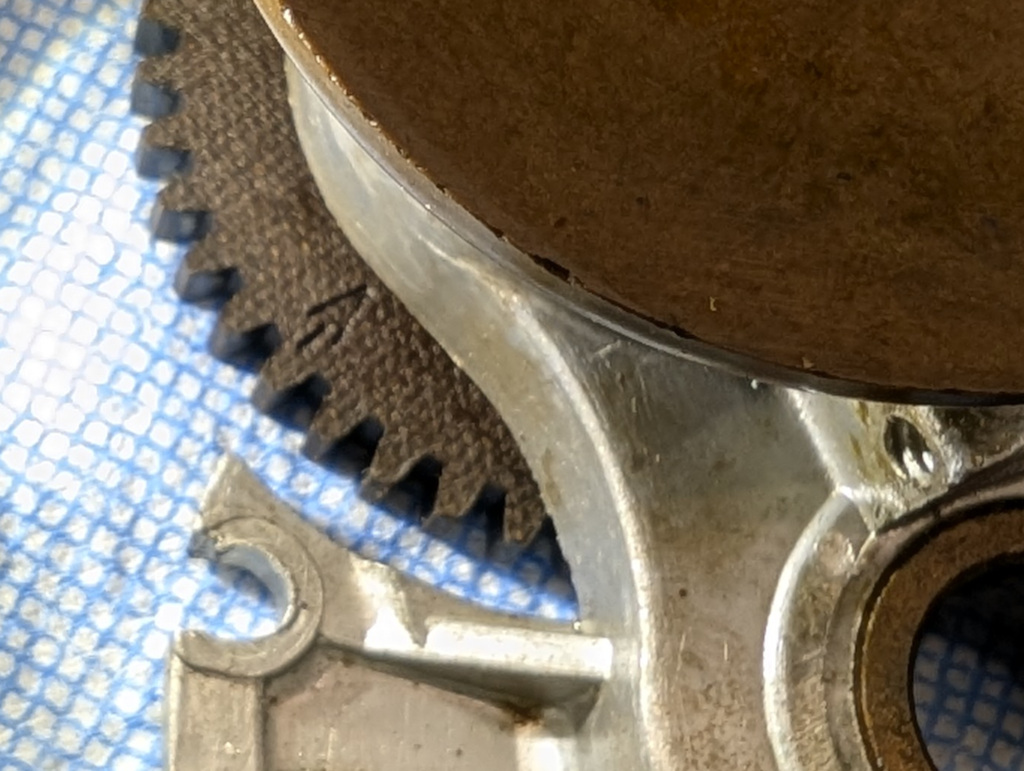

If you're lucky the fiber gear has markings, the C needs to be lined up with the right edge of the plate
In an Anti-Clockwise mag the A needs to line up with the left edge of the plate
With the C Lined up with the right edge
It's difficult to see the markings once a few things are nounted

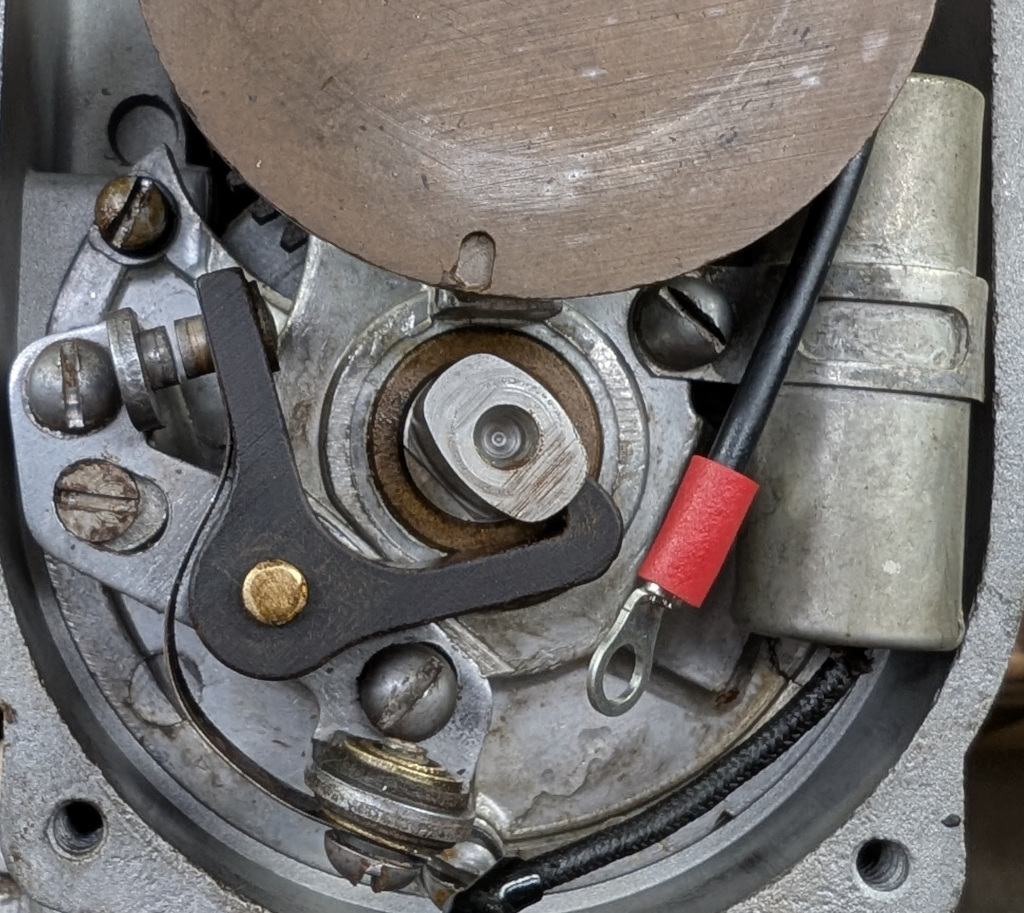

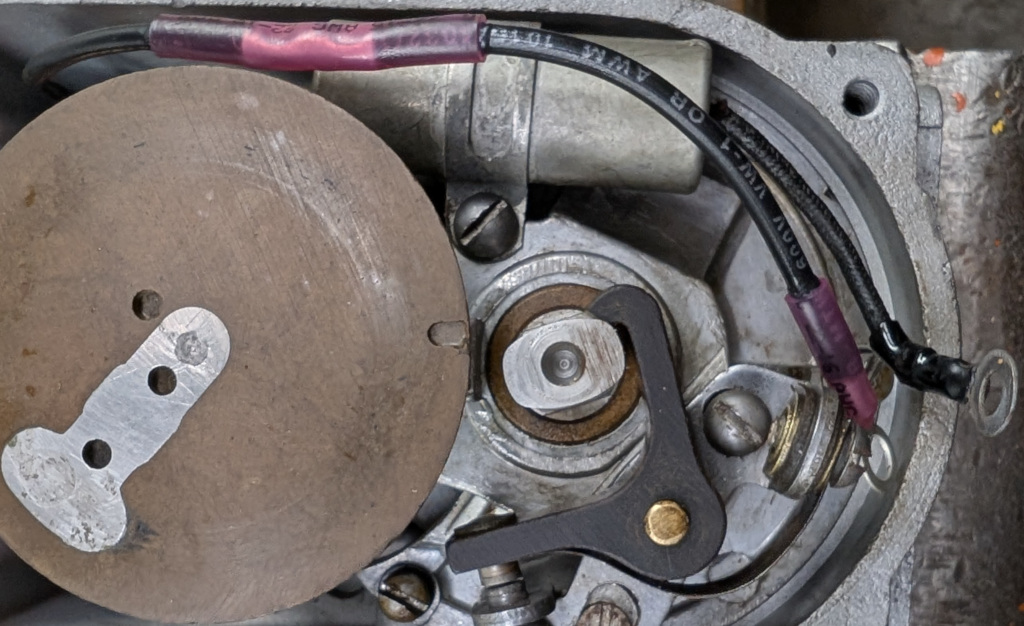

The points are adjusted and we can see the FMK needs a longer wire from the coil

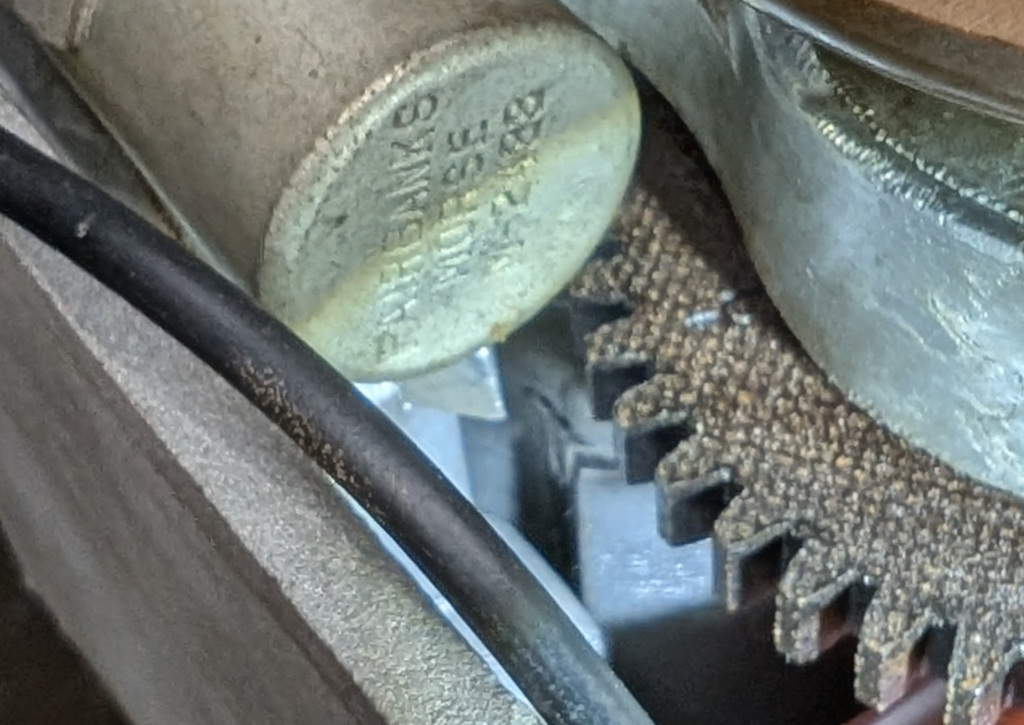

A weather proof butt splice attaches a bit longer wire

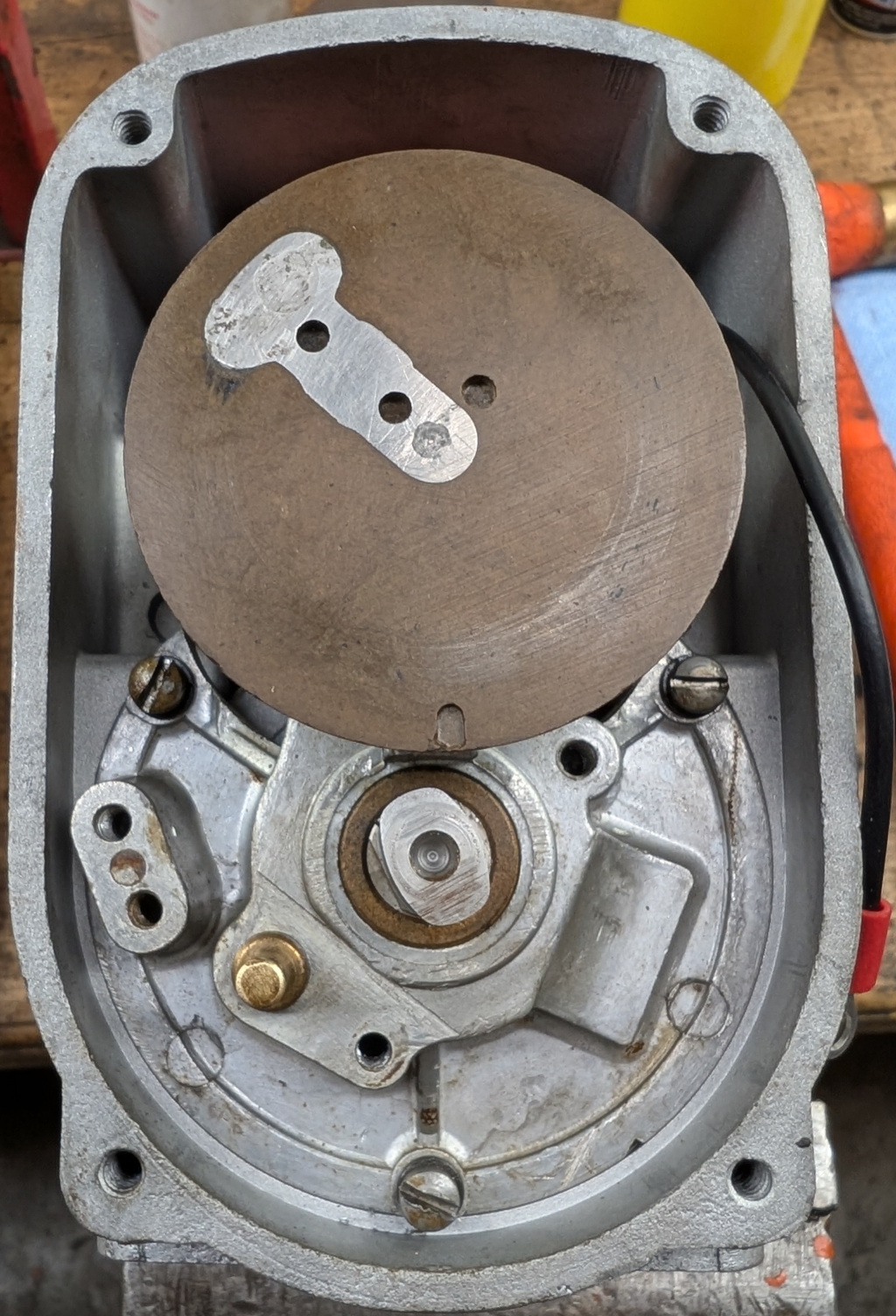

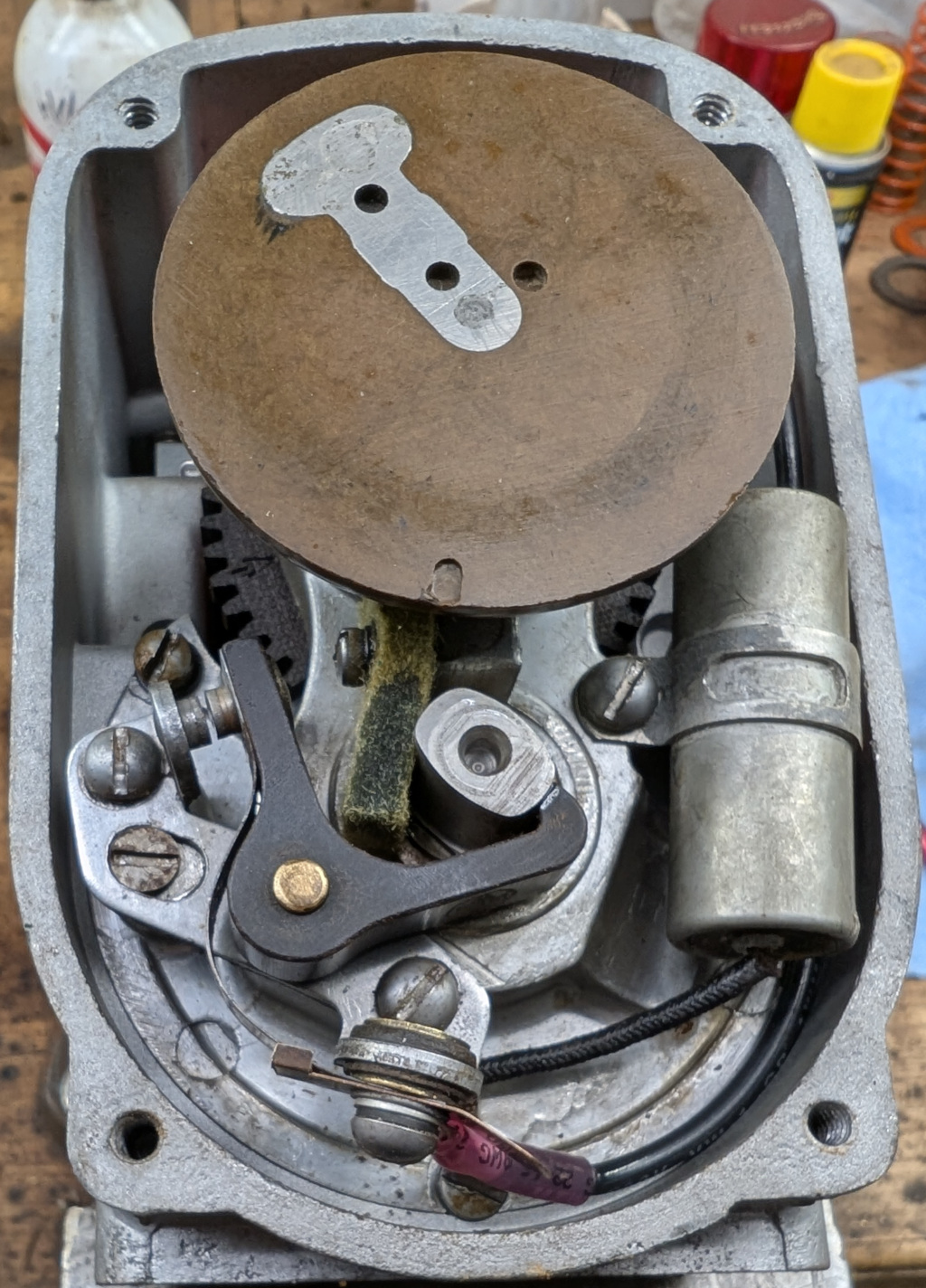

Fully assembled on the inside it's ready for the cap

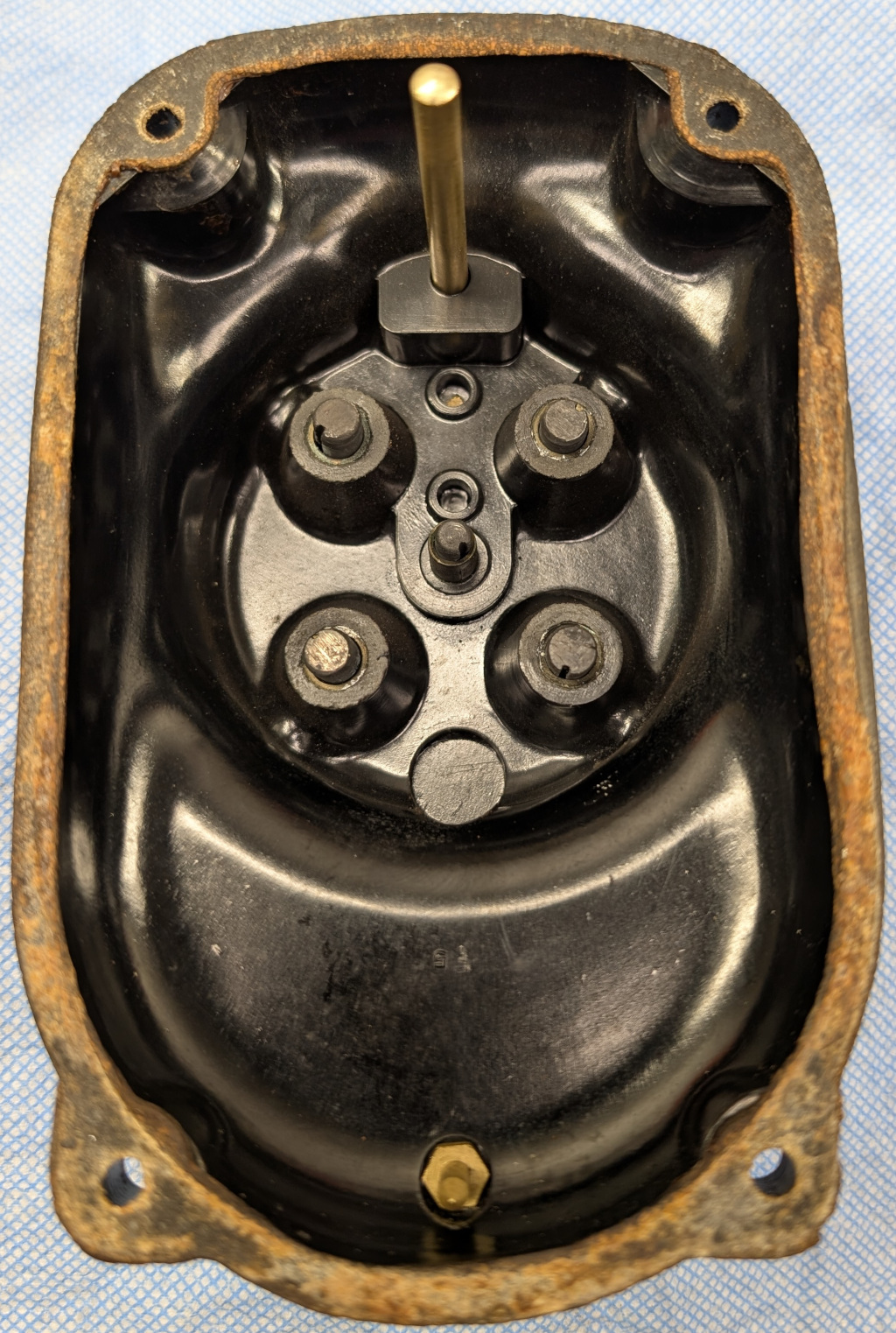

The cap needed a lot of TLC but had nice graphite brushes with good spring action

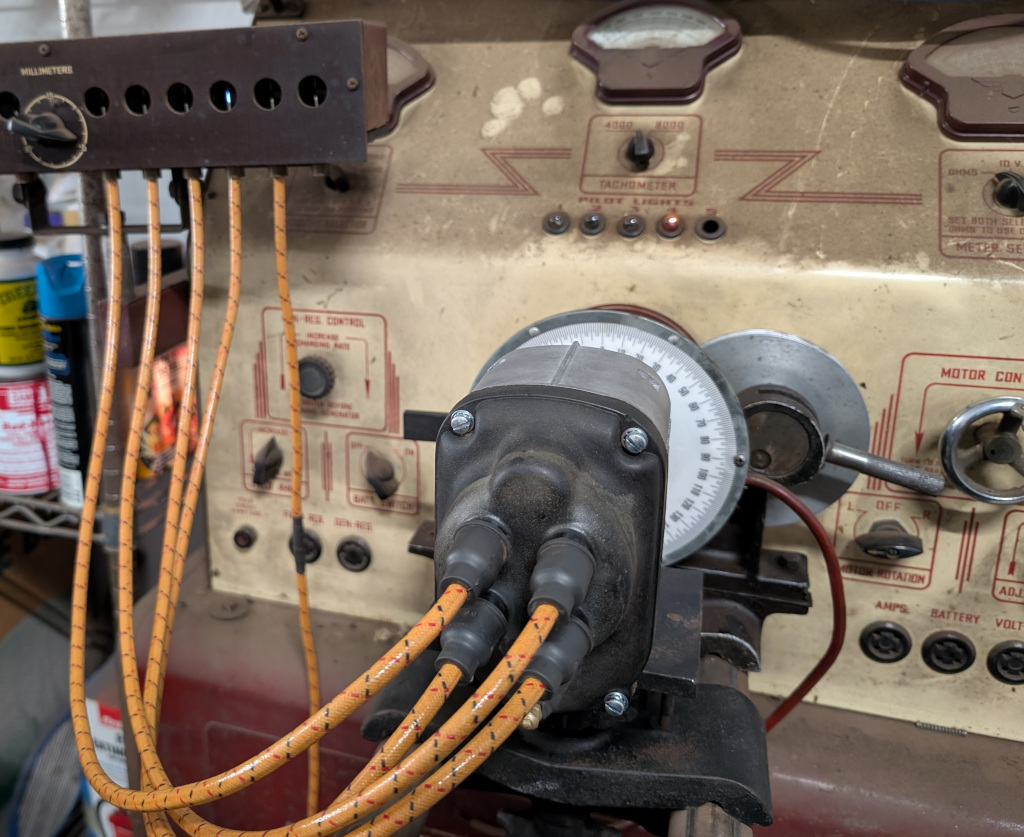

The camera captures a moment in time showing only one spark, the eyes see all four sparking

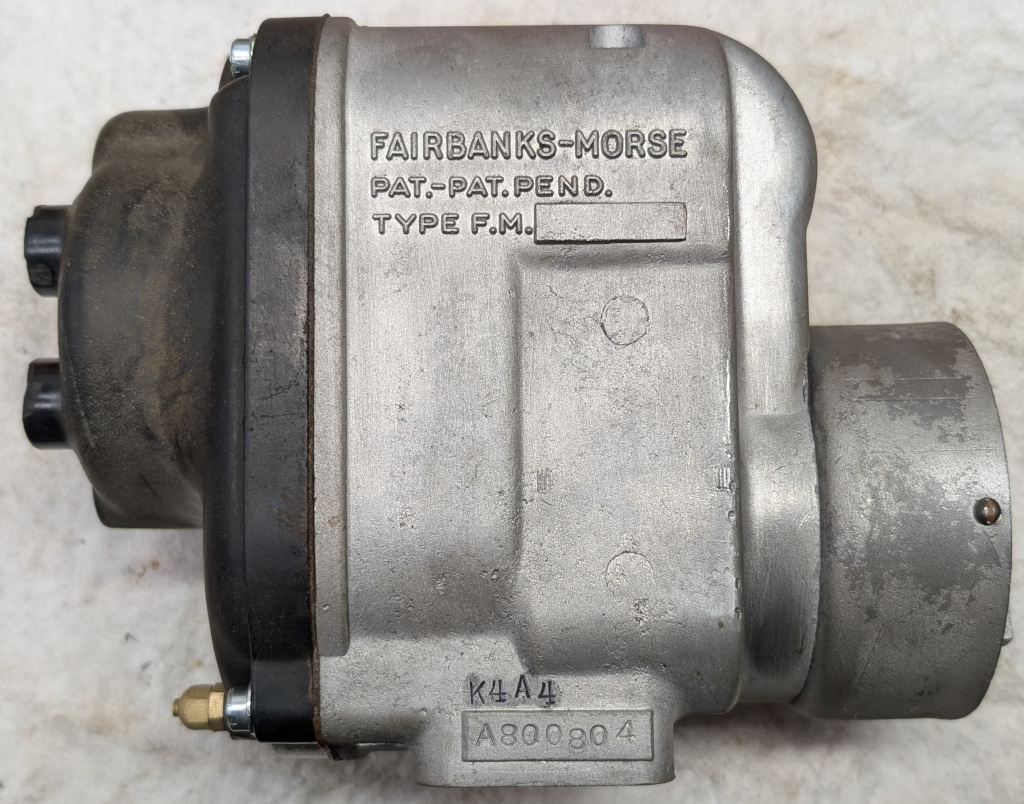

This 35° lag angle clockwise basemount mag is ready for service agsin
